This tile offers a nice darker blend of roof tiles which can present a contrast to your building if using a lighter brick. available from our yard in Stokenchurch in between High Wycombe and Oxford a beautiful French tile
| Technical Data | Roof | Vertical |
| Minimum roof pitch | 30o | 90o |
| Headlap (minimum) | 65mm | 38mm |
| Batten spacing at maximum gauge | 100mm | 114mm |
| Size of tile | 265 x 165mm | 265 x 165mm |
| Size of tile | 265 x 165mm | 265 x 165mm |
| Covering capacity | 60.0 tiles per m2 | 53.0 tiles per m2 |
| Cover width | 165mm | 165mm |
| Weight as laid | 72.0kg per m2 | 63.6kg per m2 |
| Weight per 1000 | 1.2 tonnes | 1.2 tonnes |
| Weight per tile | 1.2kg | 1.2kg |
| Battens per m2 | 10m | 10m |
| Batten size – up to 450mm after centres | 38 x 25mm | 38 x 25mm |
| Batten size – up to 600mm after centres | 38 x 25mm | 38 x 25mm |
| Nail size/type of tiles | 38 x 3.35mm aluminium ring shank clout head | 38 x 3.35mm aluminium ring shank clout head |
This tile has a very subtle light brown appearance with a very soft feel to the colour. Available from our yard in Stokenchurch in between Stokenchurch and Oxford.
| Technical Data | Roof | Vertical |
| Minimum roof pitch | 30o | 90o |
| Headlap (minimum) | 65mm | 38mm |
| Batten spacing at maximum gauge | 100mm | 114mm |
| Size of tile | 265 x 165mm | 265 x 165mm |
| Size of tile | 265 x 165mm | 265 x 165mm |
| Covering capacity | 60.0 tiles per m2 | 53.0 tiles per m2 |
| Cover width | 165mm | 165mm |
| Weight as laid | 72.0kg per m2 | 63.6kg per m2 |
| Weight per 1000 | 1.2 tonnes | 1.2 tonnes |
| Weight per tile | 1.2kg | 1.2kg |
| Battens per m2 | 10m | 10m |
| Batten size – up to 450mm after centres | 38 x 25mm | 38 x 25mm |
| Batten size – up to 600mm after centres | 38 x 25mm | 38 x 25mm |
| Nail size/type of tiles | 38 x 3.35mm aluminium ring shank clout head | 38 x 3.35mm aluminium ring shank clout head |
An integrated PV System providing perfect watertightness and a guarantee up to 30 years.
Aluminium casing ensures an unequalled service life on the roof: rot-proof, corrosion-proof, watertight and recyclable.
After a free quote? Please email us your roof plans and how many kw you would like to produce(if possible) to djgiles@btconnect.com and we can provide a free estimate and quote for you, no strings attached
View
Need a brick match?
Please send the following details to djgiles@btconnect.com
– Pictures. close up(where possible) and clear.
– Measurements. length and height (depth if necessary)
– Quantity required.
– Use. please inform us as to how you are using the bricks so we can find a suitable match for the requirements.

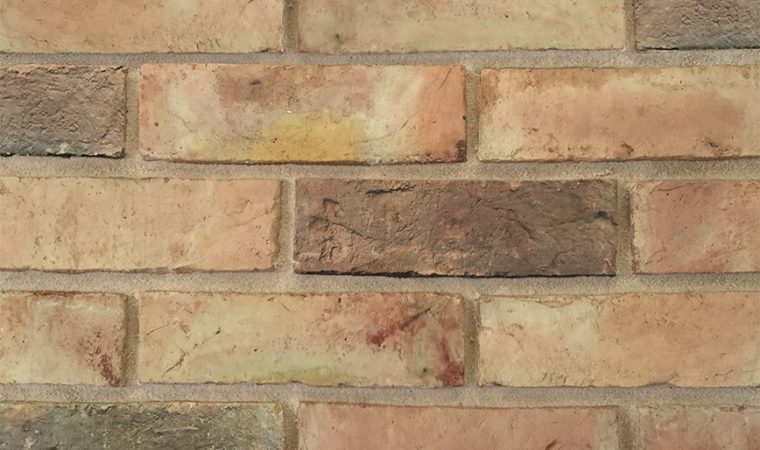

Loddon is an inspired blend of Restoration and Wentworth.
Suited for property’s in urban areas.
An ideal replacement for reclaimed handmade bricks.
This brick is characterised by red/orange shades weathered with soot and grime with additional traces of lime mortar.
Both imperial and metric sizes are kept in stock
Gives the classic look of an old, established roof, with an orange base and the old burnt ash look on the tiles. HF tiles available from our yard in Stokenchurch between High Wycombe and Oxford.
| Technical Data | Roof | Vertical |
| Minimum roof pitch | 30o | 90o |
| Headlap (minimum) | 65mm | 38mm |
| Batten spacing at maximum gauge | 100mm | 114mm |
| Size of tile | 265 x 165mm | 265 x 165mm |
| Size of tile | 265 x 165mm | 265 x 165mm |
| Covering capacity | 60.0 tiles per m2 | 53.0 tiles per m2 |
| Cover width | 165mm | 165mm |
| Weight as laid | 72.0kg per m2 | 63.6kg per m2 |
| Weight per 1000 | 1.2 tonnes | 1.2 tonnes |
| Weight per tile | 1.2kg | 1.2kg |
| Battens per m2 | 10m | 10m |
| Batten size – up to 450mm after centres | 38 x 25mm | 38 x 25mm |
| Batten size – up to 600mm after centres | 38 x 25mm | 38 x 25mm |
| Nail size/type of tiles | 38 x 3.35mm aluminium ring shank clout head | 38 x 3.35mm aluminium ring shank clout head |
All the benefits of solar energy, with an affordable and reliable solution on top
This photovoltaic solution is known for its reliability and ease of installation.
Despite its excellent quality-price ratio, we have not deviated from our demanding standards, providing a highly reliable and perfectly watertight product.
It’s the ideal solution for worry-free solar self-consumption.
After a free quote? Please email us your roof plans and how mmany kw you would like to produce(if possible) to djgiles@btconnect.com and we can provide a free estimate and quote for you, no strings attached
View
Please enquire regarding current stock as it can change regularly.
View
Please enquire regarding current stock as it can change regularly.
View
DJ Giles has been established since 1966 and is a family run business.
The foundation of our success has been built on a friendly and honest working relationship with both new and existing customers.
Over the last 53 years we have built a network of partnerships and relationships with self builders, architects, developers, roofing and builders merchants across Buckinghamshire, Oxfordshire and Berkshire.
Our reclamation centre is set on over 3 acres of land and is conveniently located just off Junction 5 of the M40.
At DJ Giles we run a fleet of modern day vehicles which have crane off load facilities and our friendly, flexible approach will ensure that your delivery is made as efficiently as possible.
